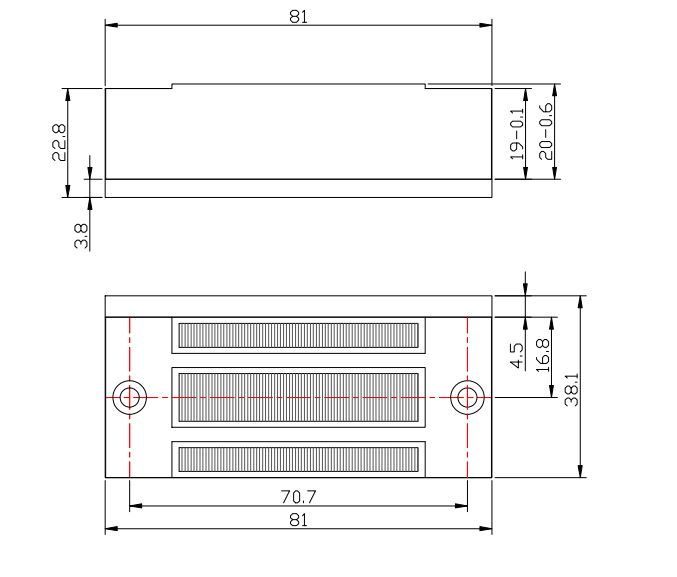

Dimension: 80Lx36.5Wx24.1H(mm)
Armature plate: 75Lx32Wx10H(mm)
Holding Force: 60kg(120Lbs)
Voltage: 12VDC+10%
Current Draw: 12V/160mA
Suitable for: File Cabinet ,Display Cabinet
|
Warranty (years) |
2 |
|
Holding force (kg) |
60 |
|
Current (mA) |
160 |
|
Operating humidity(RH) |
0% - 90% (non-condensing) |
|
Operating temperature (°C) |
+10°C - +55°C |
|
Voltage (V) |
12 VDC |
|
Dimensions (LxWxH mm) |
80х36.5х24.1 |
|
Certificate |
CE |
|
Lock type |
Fail Safe |
