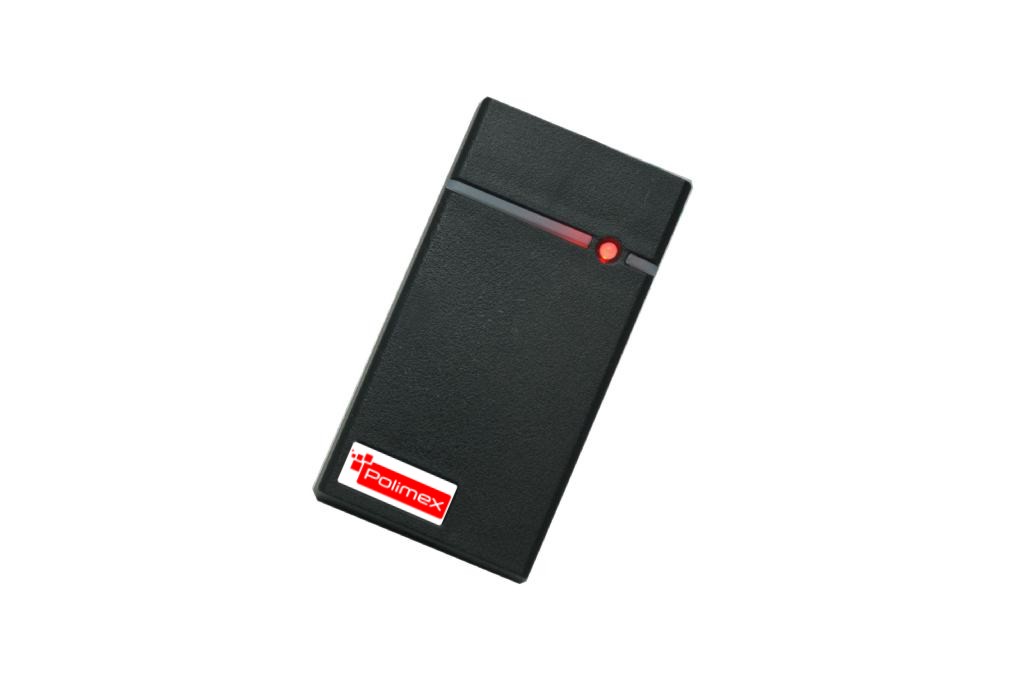

100% water resistant proximity card reader, coated with epoxy resin.
Working voltage: 6-14 VDC; Standart voltage: 12 VDC
Current: 70 mA;
Suitable for indoor and outdoor mounting;
Proximity range - 10см.;
Audio and visual signalisation of the working mode by LED and sound indicator;
The maximum communication distance between the reader and the controler is 90m - that makes it suitable for for objects with complex structure.
Small and compact, allowing instalation on a doors with thin frames.
|
Color |
Black , White |
|
Warranty (years) |
2 |
|
Current (mA) |
70 |
|
Operating humidity(RH) |
0% - 90% (non-condensing) |
|
Operating temperature (°C) |
-25 - +75 |
|
Voltage (V) |
12 VDC |
|

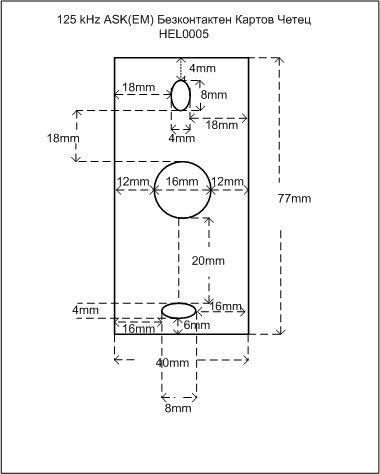

Dimensions (LxWxH mm) |
80х43х16 |
|
Card chip frequency |
125 kHz ASK , 13,56 MHz |
|
Certificate |
ISO 9001-2000, MA |
