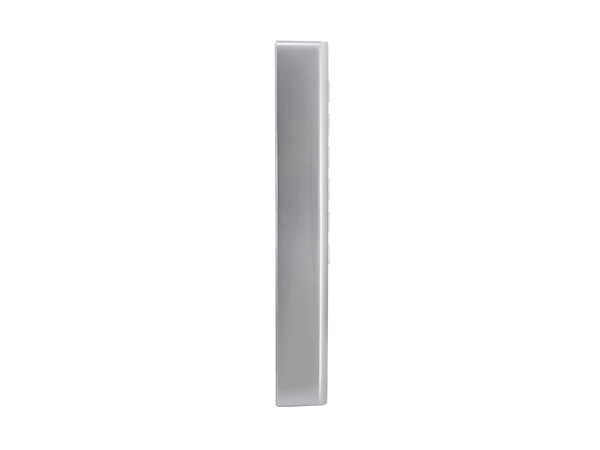

IP66 Anti-Vandal Universal Standalone Keypad and RFID reader (EM+HID+MF) STR5-HYBRID

120.00 лв. 120.0 BGN

120.00 лв.

Add to Cart


STR5-HYBRID е waterproof/ vandal-proof reader/standalone controller for outdoor use. It support 3 kinds of reading standards EM+HID+MF. The best application case is in new installations with existing access control systems working with different cards(125 KHz EM, 125 KHz HID, 13.56 KHz MFR).
STR5 can work as Wiegand reader connected to access control panel. It supports Wiegand output from 26 to 37 bits.
The second more give you full featured standalone access control. Just connect the power supply and door lock mechanism and start adding cards


До 14 дена можете да върнете поръчана стока
Цените са без ДДС
Купете сега, получете до 2 работни дни

Universal Keypad (EM+HID+MF)

> Waterproof, conforms to IP66

> One relay, 600 users

> Card type: 125KHz EM card,125KHz HID card, and 13.56Mhz Mifare Card

> PIN length: 4~6 digits

> Wiegand 26~37 bits input & output

> Can be used as Wiegand reader with LED & Buzzer output

> Pulse mode, Toggle mode

> 2 devices can be interlocked for 2 doors

> 12~28V AC/ DC

Odoo image and text block

Common Power supply connection

The product give you full featured standalone access control system. Check the details on the diagram

Reader operation mode

You can use the product as a reader connected to any type of Wiegand based access control panels
